#단종, #지브라태블릿PC, #Zebra, #ET50, #ET55, #2D, #안드로이드, #윈도우즈, #산업용태블릿PC

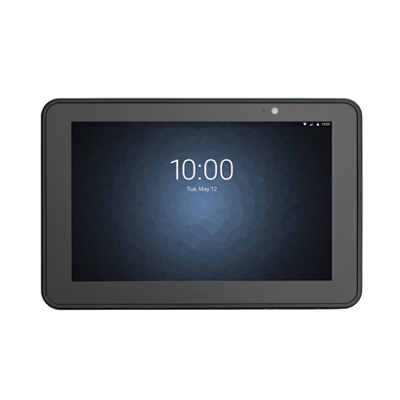

지브라, ET50, ET55,
안드로이드 or 윈도우즈, 산업용 태블릿 PC
모든 엔터프라이즈급 기능과 함께 소비자용 기기와 유사한 환경 제공
사내의 소매 담당 직원과 창고 담당자부터 현장의 영업사원과 배송 및 서비스 기사까지, 어떤 작업과 어떤 환경에도 적합하게 업무용 태블릿을 유연하게 맞춤 설정할 수 있습니다.
직원들이 친숙하게 사용할 수 있도록 소비자용 기기와 유사한 환경을 제공하면서 엔터프라이즈급 내구성, 장시간 지속되는 배터리, Android 또는 Windows® 중에서 선택할 수 있는 옵션, 혹독한 환경에서 내구성을 더해주는 견고한 프레임, 두 가지 디스플레이 크기, GPS, NFC 및 고속 Wi-Fi와 셀룰러 무선 연결(ET50의 경우 802.11 a/b/g/n(Windows) 및 802.11 a/b/g/n/ac/d/h/i(Android) Wi-Fi, ET55의 경우 4G LTE) 등 비즈니스 요구를 충족하는 데 필요한 모든 엔터프라이즈급 기능과 옵션이 제공됩니다. Zebra의 태블릿은 이미지 캡처, 바코드 스캔 및 화상 통화를 위한 두 개의 통합 카메라; 첨단 스캔 엔진 옵션과 간편한 바코드 캡처를 지원하는 혁신적인 Bluetooth 스캐너; 화면에 물기가 있을 때도 작동하는 세 가지 데이터 입력 방법(액티브 스타일러스, 손가락 또는 장갑을 착용하거나 착용하지 않고 손가락 사용) 등 데이터 캡처와 관련해서 필요한 모든 것을 제공합니다.
다양한 비즈니스 요구를 충족시키는 표준 및 전문 구성
표준 구성은 GMS(Google Mobile Services)와 AFW(Android for Work)를 포함합니다.
GMS는 Gmail, Google Maps 및 Google Play Store와 같은 통합 Google 애플리케이션을 제공하고, AFW는 MAM(Mobile ApplicationManagement)과 같은 엔터프라이즈 기능을 제공합니다.
전문 구성에는 Google GMS와 AFW가 제외된 상태로 배송되기 때문에 모든 서비스 연결이 해제되므로 Zebra의 부가 가치를 유지하는 동시에 시스템 프라이버시도 보호할 수 있습니다.
두 가지 구성 모두 Android 오픈 소스(AOSP)를 기반으로 합니다.
특징과 장점
Android 또는 Windows 중에서 선택
Android 또는 Windows 중에서 기술 전략에 적합한 운영 체제(OS)를 선택할 수 있습니다.
모든 Android ET50/ET55에는 엔터프라이즈급 보안, 기기 관리, 데이터 캡처 기능 등을 통해 Android를 소비자용 OS에서 진정한 엔터프라이즈급 OS로 바꿔주는 Mobility Extensions(Mx)가 함께 제공됩니다.
풍부한 액세서리 제품군
ET50/ET55 엔터프라이즈 태블릿은 데이터 캡처 기능, 견고한 사양 및 전원 관리 기능을 직원들에 맞게 조정할 수 있는 다양한 액세서리를 제공하며 IT 팀에게는 백룸 관리 효율성을 높일 수 있는 모든 액세서리가 제공됩니다.
Wi-Fi 및 4G LTE 지원
사무실에서는 ET50의 802.11a/b/g/n(Windows) 및 802.11 a/b/g/n/ac/d/h/i(Android) 지원으로 기존 무선랜과의 호환성을 보장합니다.
ET55는 4G LTE를 지원하므로 전 세계 어디서나 세계에서 가장 빠른 셀룰러 데이터 네트워크에서 강력한 무선 연결이 가능합니다.
ET50/55 Windows Specifications Chart
PHYSICAL CHARACTERISTICS
Dimensions :
- 8.3 inch. tablet: 9 in. W x 5.9 in. H x 0.5 in. D/ 228 mm W x 150 mm H x 12.5 mm D
- 10.1 inch. tablet: 10.6 in. W x 7.1 in. H x 0.5 in. D/ 269 mm W x 181 mm H x 12.5 mm D
Weight :
- 8.3 inch.: 1.2 lbs./555 g
- 10.1 inch: 1.55 lbs./750 g
Display : 8.3 inch / 21 cm and 10.1 inch / 25.6 cm: 1920x1200; Corning® Gorilla® Glass 3 1.3 mm; active digitizer (only 10.1 in); outdoor viewable
Touchpanel : Capacitive 10 point multi-touch
Backlight : Ambient light sensor
Keypad Options : Virtual; Bluetooth®; USB
Expansion : Integrated connector to easily add accessories
Connectivity : Docking connector: USB 3.0, HDMI, charging; rugged connector for use with rugged dock Interfaces: full-size USB2.0 connector, audio jack 3.5mm, μUSB (for charging)
Notification : LED flash; bar code decode; camera LED indicator
Audio : Stereo speakers and dual microphones (one front and one rear-facing)
PERFORMANCE CHARACTERISTICS
CPU : Intel quad core 1.59GHz (Turbo Frequency = 2.39GHz) Frequency supports 64 bit OS
Operating System : Windows 10
Memory : 4GB LPDDR3 RAM; 64 GB eMMC Flash; User accessible microSDXCcard slot (standard supports up to 2 TB)
USER ENVIRONMENT
Operating Temp. : 32° F to 122° F/0° C to 50° C
Storage Temp. : -4° F to 140° F/-20° C to 60° C
Drop Specification :
- Standard: 3.28 ft./1m drop to concrete without rugged frame
- With optional rugged frame: 5.9 ft./1.8 m to concrete per MIL-STD-810G
Sealing : IP65
Vibration :
- Operational: random vibration 10-1000 Hz 1.9g RMS, 1 hour duration per axis.
- Non-operational: random vibration 10-1000Hz, 4.1 g RMS
Humidity : 10% to 90% RH (non-condensing)
POWER
Battery User Profile : Ample power for a full shift; continuous operation is enabled with the secondary optional battery
Battery :
- 8.3 inch.: 5900 mAh rechargeable Li-Ion; user replaceable
- 10.1 inch: 8700 mAh rechargeable Li-Ion; user replaceable
- Optional hot swappable 6800 mAh secondary battery available for 8.3 in. or 10.1 in. ET50/ET55
DATA CAPTURE
Scanning : Available through the expansion back accessory: SE4750 or SE4710 integrated advanced imagers with hardware decoding
Rear Camera : Image capture: 8MP auto-focus camera with user controllable LED flash, illumination and aiming; photographs, video, signatures and documents
Front Camera : 2 MP 1080p full HD optimized for video collaboration and low lighting conditions
Video : 1080p (Full HD, 1920 x 1080), Frame rate = 30fps
WIRELESS COMMUNICATIONS
WLAN : 802.11 a/b/g/n; dual band 2x2 MIMO for transmit and receive
WWAN :
- Global LTE with HSPA+
- North America: AT&T LTE with AT&T (HSPA+) 3G fallback; Verizon LTE with EVDO fallback
WPAN : Class 2, Bluetooth v4.0 (Bluetooth® Smart)
GPS : GNSS supports both GPS and Glonass with LTO technology for Assisted-GPS without sacrificing autonomous operation
NFC : P2P: ISO 18092; Reader/Writer: ISO 14443 ?A-B, MIFARE, FeliCa®, ISO 15693, NFC Forum Tag Types 1 to 4; Card emulation: ISO 14443 ?A-B-B’, MIFARE, FeliCa RF; distance up to 3 cm
SENSORS
Gyroscope : Maintains orientation based on principles of conservation of angular momentum
Motion Sensor : 3-axis accelerometer that enables motionsensing applications for dynamic screen orientation and power management
Ambient Light Sensor : Automatically adjusts display brightness, keypad and display backlight
Electronic Compass : Independent ? does not depend on GPS
PERIPHERALS AND ACCESSORIES
Accessories include: ShareCradles (4-slot); docking stations; vehicle mount cradle; single slot charge cradle; 4-slot optional battery charger; rugged frames; expansion back to easily add accessories (scanner/hand strap and optional battery bay or hand strap and optional battery bay); holster; replacement batteries, active stylus, screen protectors; charging cables and more
ET50/55 Android Specifications Chart
PHYSICAL CHARACTERISTICS
Dimensions :
- 8.3 inch tablet : 9 in. W x 5.9 in. H x 0.5 in. D/ 228 mm W x 150 mm H x 12.5 mm D
- 10.1 inch tablet : 10.6 in. W x 7.1 in. H x 0.5 in. D/ 269 mm W x 181 mm H x 12.5 mm D
Weight :
- 8.3 inch : 1.2 lbs./555 g
- 10.1 inch : 1.55 lbs./750 g
Display : 8.3 inch / 21 cm and 10.1 inch / 25.6 cm: 1920x1200; Corning® Gorilla® Glass 3 1.3 mm; bonded touchpanel for strength and reduced reflections; active digitizer; outdoor viewable
Touchpanel : Capacitive 10 point multi-touch
Backlight : Ambient light sensor
Keypad Options : Virtual; Bluetooth®; USB
Expansion : Integrated connector to easily add accessories
Connectivity : Docking connector: USB 3.0, HDMI, charging; rugged connector for use with rugged dock Interfaces: full-size USB2.0 connector, audio jack 3.5mm, μUSB (for charging/debugging)
Notification : LED flash; bar code decode; camera LED indicator
Audio : Stereo speakers and dual microphones (one front and one rear-facing)
PERFORMANCE CHARACTERISTICS
CPU : Intel quad core 1.33GHz (Turbo Frequency = 1.86GHz) Frequency supports 64 bit OS
Operating System : Android 5.1 (Lollipop Mobility Extensions (Mx), a layer of features that turns Android into a true enterprise-class OS
Memory : 2GB LPDDR3 RAM; 32 GB eMMC Flash; User accessible microSDXC card slot (standard supports up to 2 TB)
USER ENVIRONMENT
Operating Temp. : 32° F to 122° F/0° C to 50° C
Storage Temp. : -4° F to 140° F/-20° C to 60° C
Drop Specification :
- Standard: 3.28 ft./1 m drop to concrete without rugged frame
- With optional rugged frame: 5.9 ft./1.8 m to concrete per MIL-STD-810G
Sealing : IP65
Vibration :
- Operational: random vibration 10-1000 Hz 1.9g RMS, 1 hour duration per axis.
- Non-operational: random vibration 10-1000Hz, 4.1g RMS
Humidity : 10% to 90% RH (non-condensing)
Development Tools : See extensive support in the Mobility DNA solutions below; Zebra RhoElements for cross platform application development
POWER
Battery User Profile : Ample power for a full shift; continuous operation is enabled with the secondary optional battery
Battery :
- 8.3 inch : 5900 mAh rechargeable Li-Ion; user replaceable
- 10.1 inch : 8700 mAh rechargeable Li-Ion; user replaceable
- Optional hot swappable 6800 mAh secondary battery available for 8.3 in. or 10.1 in. ET50/ET55
DATA CAPTURE
Scanning : Available through the expansion back accessory: SE4750 integrated advanced imagers with hardware decoding
Rear Camera : Image capture: 8MP auto-focus camera with user controllable LED flash, illumination and aiming; photographs, video, signatures and documents
Front Camera : 2 MP 1080p full HD optimized for video collaboration and low lighting conditions
Video : 1080p (Full HD, 1920 x 1080), Frame rate ? 30fps
WIRELESS COMMUNICATIONS
WLAN : 802.11 a/b/g/n/ac/d/h/i; dual band 2x2 MIMO for transmit and receive
WWAN :
- Global LTE with HSPA+
- North America: AT&T LTE with AT&T (HSPA+) 3G fallback; Verizon LTE with EVDO fallback
WPAN : Class 2, Bluetooth v4.0 (Bluetooth® Smart)
GPS : GNSS supports both GPS and Glonass with LTO technology for Assisted-GPS without sacrificing autonomous operation
NFC : P2P: ISO 18092; Reader/Writer: ISO 14443 ?A-B, MIFARE, FeliCa®, ISO 15693, NFC Forum Tag Types 1 to 4; Card emulation: ISO 14443 ?A-B-B’, MIFARE, FeliCa RF; distance up to 3 cm
SENSORS
Gyroscope : Maintains orientation based on principles of conservation of angular momentum
Motion Sensor : 3-axis accelerometer that enables motionsensing applications for dynamic screen orientation and power management
Ambient Light Sensor : Automatically adjusts display brightness, keypad and display backlight
Electronic Compass : Independent - does not depend on GPS
MOBILITY DNA SOLUTIONS
Mobility DNA solutions help you get more value out of our mobile computers by adding functionality as well as simplifying deployment and management of our mobile devices. For more information on these Zebra-only features, please visit www.zebra.com/mobilitydna
- AppGallery EMDK
- Enterprise Browser All-touch Terminal
- Emulation
- StageNow SwipeAssist
Available Mobility DNA features may vary by model.
PERIPHERALS AND ACCESSORIES
Accessories include: ShareCradles (4-slot); docking stations; single slot charge cradle; 4-slot optional battery charger; rugged frames; expansion back to easily add accessories (scanner/hand strap and optional battery bay or hand strap and optional battery bay); holster; replacement batteries, active stylus, screen protectors; charging cables and more
REGULATORY
For Regulatory information, please visit www.zebra.com/et5X
